- Engine Brand Cub Cadet®
- Engine Model Number 690-WUC
- Engine Displacement 420cc
- Fuel Tank Capacity 5 quarts US / 4.7 L
- Engine Start Recoil and Push-Button Electric
- Governor Mechanical
- Fuel Delivery Carburetor
- Number of Forward Speeds 6
- Number of Reverse Speeds 2
- Drive System Track Drive
- Drive Type Friction Disc
- Tire Size N/A
- Tread Track Drive
- Warranty 3-year limited residential
- Auger Gearbox Warranty 5-year limited
- Commercial Warranty 1-year limited
- Chute Warranty 3-year limited
- Warranty Disclaimer See owners manual for warranty details and information. Certain restrictions apply.

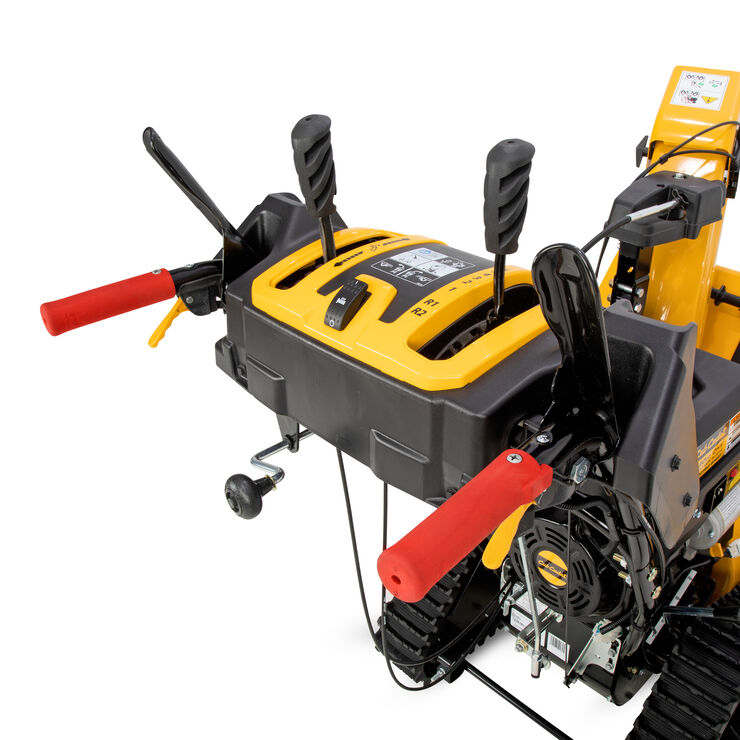

- Handle Grip(s) Soft-Touch Heated Grips
- Pitch Control Remote Single-Lever
- Chute Rotation 200°

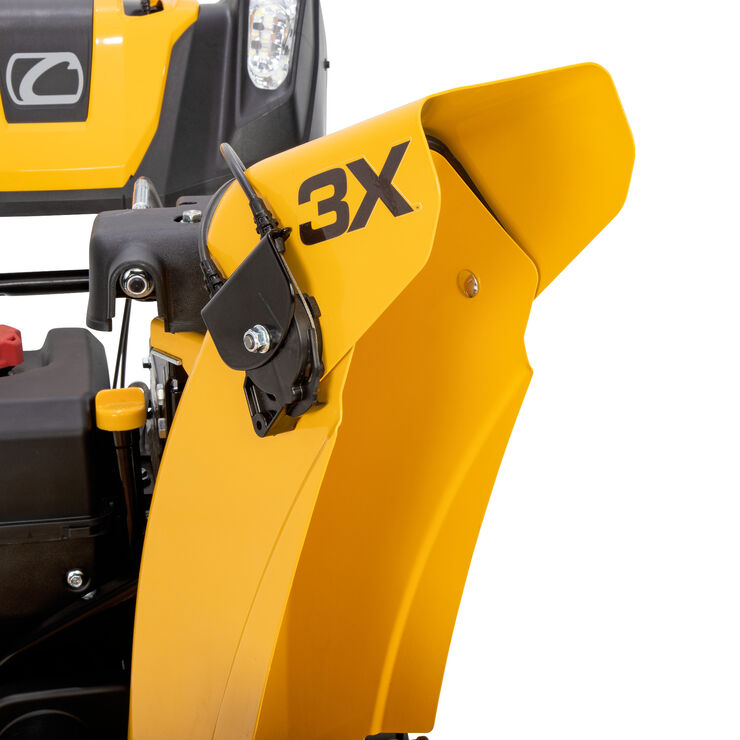

- Chute Control Overhead Crank
- Single-Hand Operation Standard
- Steering Control Trigger-Controlled Power Steering
Power and Performance
- Clearing Width 30"
- Intake Height 23"
- Auger Gear Box Heavy-duty cast aluminum
- Number of Stages Three
- Auger Diameter 12"
- Impeller Diameter 12"
- Accelerator Diameter 12"
- Headlight(s) Dual LED and LED Light Bar
- Shave Plate Heavy Duty Steel
- Skid Shoes Reversible Poly
- Drift Cutters No
- Auger Material Serrated Steel
- Chute Material Steel
- Chute Clearing Device Yes
- Model Number 31AH7EVZ710
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
